Hikvision DS-2CD2E43G2-U 4MP AcuSense IP Network Mini Dome Camera
DS-2CD2E43G2-U is a 4MP IP network recessed mini dome camera featuring 2688 × 1520 resolution. This camera has a 2.8mm fixed lens and built-in microphone. This recessed camera is designed to be installed into a suspended ceiling thus providing minimal and unobtrusive surveillance camera design. The camera requires a minimum 90mm ceiling void. This camera supports 12V DC or PoE (Power of Ethernet) connections for easy installation and uses the latest
This camera has Acusense technology which uses a deep learning algorithm to help filter human and vehicle targets from other moving objects and reduce the number of false alarms generated.
This camera supports smart features including line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection and scene change detection.
DORI
DORI Detect Observe Recognise Identify Definition 25 px/m 63 px/m 125 px/m 250 px/m Distance 56m 22m 11m 6m Key Features
- High quality imaging with 4MP resolution
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Built-in microphone for real-time audio security
- Focus on human and vehicle targets classification based on deep learning
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON)
- Shutter Speed1/3 s to 1/100,000 s
- Angle AdjustmentTilt: 0° to 75°
- Lens
- Lens Type & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
4 mm, horizontal FOV 84°, vertical FOV 43°, diagonal FOV 100°
- ApertureF1.6
- Lens MountM12
- DORI
- DORI
2.8 mm: D: 56 m, O: 22 m, R: 11 m, I: 6 m
4 mm: D: 85 m, O: 34 m, R: 17 m, I: 9 m
- Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)
Yes
- Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
- Network
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK , ISUP
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Wide Dynamic Range (WDR)120 dB
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image Parameters SwitchYes
- Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Interface
- Built-In MicrophoneYes
- On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
- Face DetectionYes
- Deep Learning Function
- Perimeter Protection
Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
- General
- Power
12 VDC ± 25%, 0.27 A, max. 3.2 W, two-core terminal block
PoE: (802.3af, 36 V to 57 V), Class 3, 0.12 A to 0.07 A, max. 4.2 W
- Linkage MethodUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
- Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, password reset via email, pixel counter
- Storage Conditions-10 °C to 50 °C (14 °F to 122 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-10 °C to 50 °C (14 °F to 122 °F). Humidity 95% or less (non-condensing)
- MaterialPlastic body
- Screw MaterialSUS304

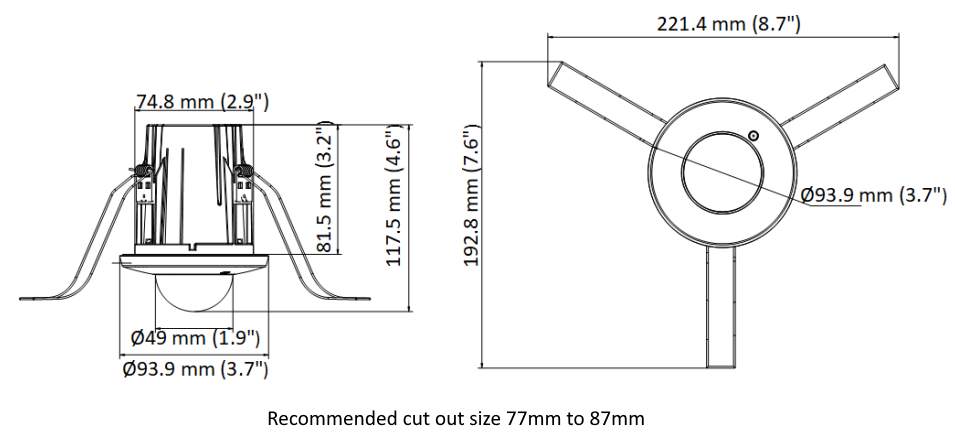

- Camera DimensionØ93.9 × 117.5 mm (Ø3.7" × 4.6")
- Package Dimension135 × 135 × 183 mm (5.3" × 5.3" × 7.2")
- Camera WeightApprox. 155 g (0.3 lb.)
- With Package WeightApprox. 325 g (0.7 lb.)
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015)
- Safety
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
