DS-KAD7061EY Hikvision 2 Wire HD 4 Channel Video/Audio Distributor

SKU
DS-KAD7061EY

DS-KAD7061EY Hikvision video/audio distributor supporting 4 channel floor shunt, compatible with 2 Wire HD intercom product range.
OR
  • INFO
  • SPECS
  • DOWNLOADS
  • RELATED
  • VIDEOS

  • Hikvision DS-KAD7061EY 2 Wire HD Distributor

    DS-KAD7061EY 2 wire video/audio distributor is used to distribute power and data to Hikvision 2 Wire HD intercom modules such as DS-KD7300EY-WTE2 touch screen and DS-KD7003EY-IME2 outdoor camera module.  The DS-KAD7061EY distributor, also know as a door shunt module, supports up to 4 indoor stations using Star connection wiring.  Additional door stations can be supported using daisy chain wiring method, up to a maximum of 22 indoor stations (WiFi model) or 64 indoor stations (non WiFi) using a single 150W power supply.

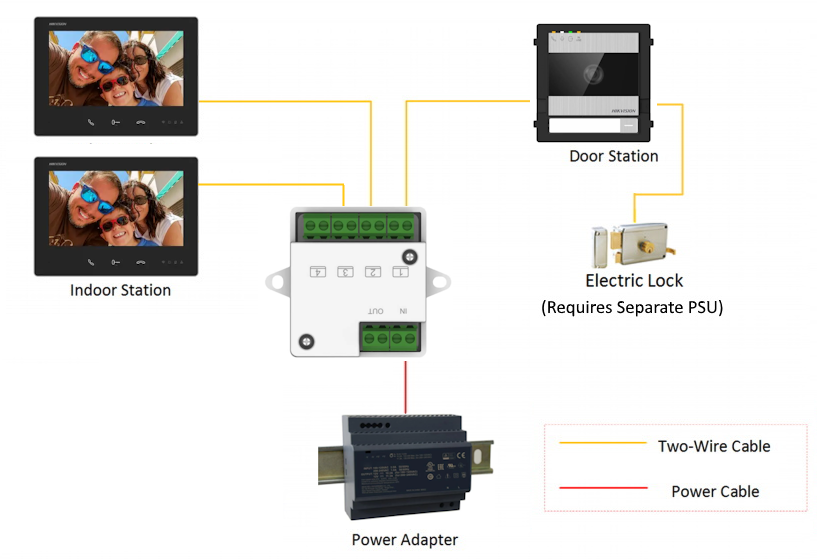

    TYPICAL INSTALLATION - SIMPLE DESIGN

    Typical_install_KAD7061EY

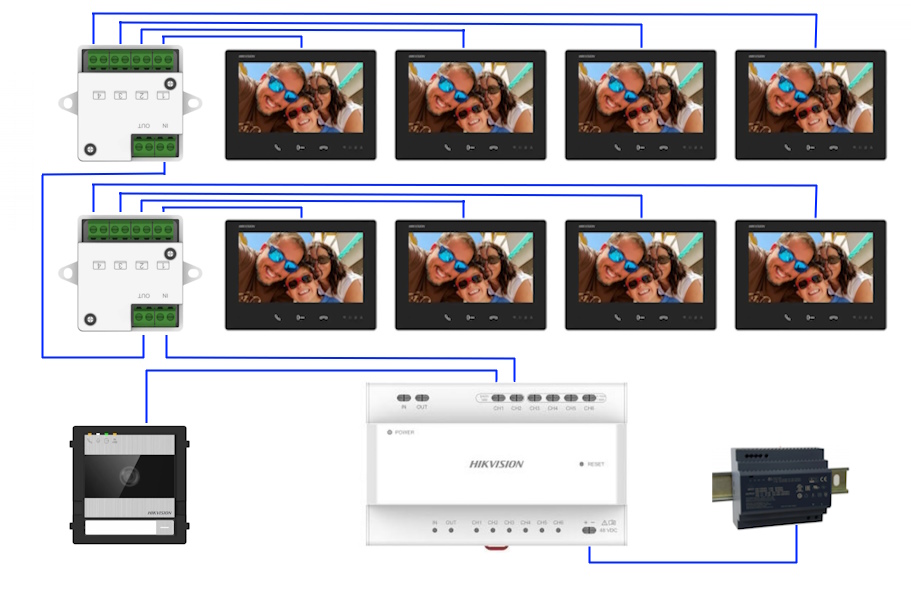

    TYPICAL INSTALLATION - STAR CONNECTION

    Typical_install_2_Wire_HD

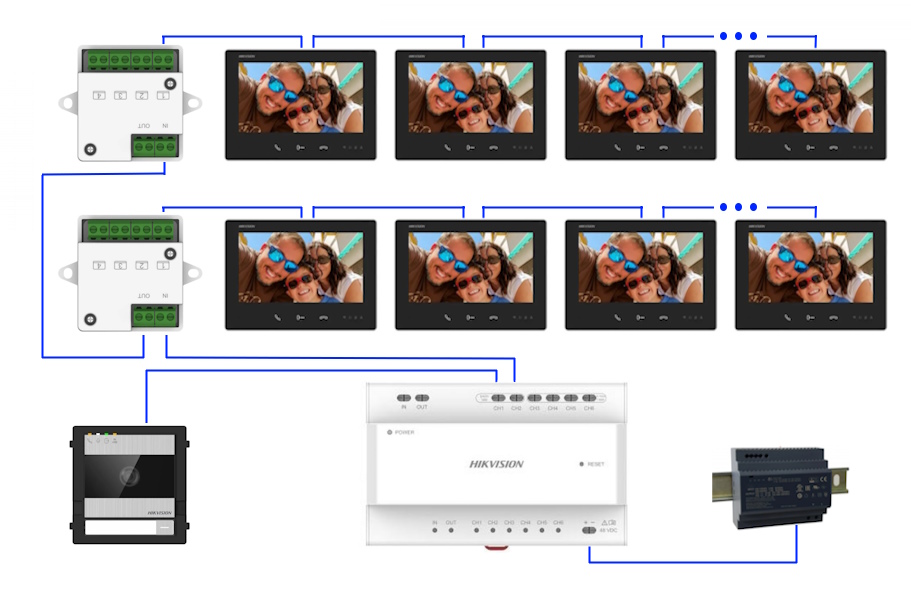

    TYPICAL INSTALLATION - DAISY CHAIN CONNECTION


Part Number
DS-KAD7061EY
Label
ITM003555
Brand
Hikvision
Item Condition
new
