Hikvision DS-KH6320Y-WTE2 2 Wire Video Intercom Indoor Station 7" Touch Screen
DS-KH6320Y-WTE2 2 wire 7" video intercom touch screen, part of the Hikvision modular intercom range. With built-in omni-directional microphone and speakers, users can view live images and answer calls received from the DS-KD8003-IME2 outdoor station. The indoor touch screen supports Wi-Fi connections making it a powerful yet simple to install intercom solution.
The DS-KH6320Y-WTE2 7-inch touch screen offers 1024 x 600 resolution using capacitive touch technology in a compact and affordable package. The screen supports 128Mb internal memory to save images etc with additional TF card slot for up to 32GB additional storage and up to 8 external alarm inputs (from a PIR or similar).
You can answer calls & open the gate using the touch screen and also remotely via Hik-Connect mobile App or via PC using IVMS-4200.
When used alongside a Hikvision NVR its possible to view the NVR's cameras on the touch screen in addition to any outdoor station camera.
Key Features
- 2-wire IP indoor station
- 7“ capacitive touch-screen, Wi-Fi
- TF card support, max t o 32G
- 8-ch alarm input, 2 × alarm output, 1 × RS485
- Remote unlocking via the client or APP
- Views live videos of door stations and linked cameras

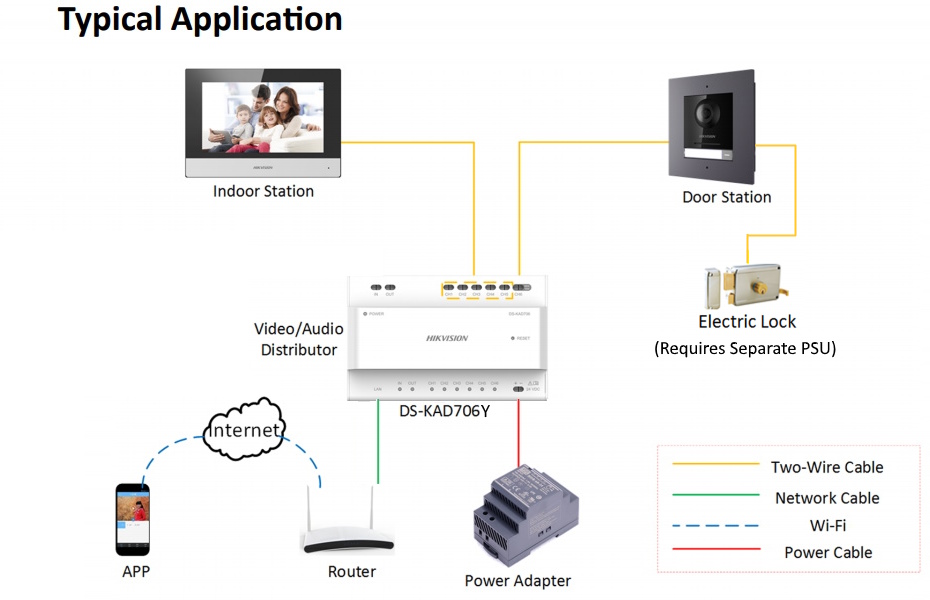

Typical Installation
Demonstration Video
Easy Configuration
- System Parameters
- Operating SystemEmbedded Linux operation system
- ROM32 MB
- RAM128 MB
- CPUEmbedded processor
- Display Parameters
- Screen Size7-inch
- Operation MethodCapacitive touch screen
- TypeColorful TFT screen
- Resolution1024 × 600
- Video Parameters
- Lens/
- FOV/
- WDR/
- Resolution/
- Focal Length/
- Audio Parameters
- Audio Compression StandardG.711 U G.711 A
- Audio InputBuilt-in omnidirectional microphone
- Audio OutputBuit-in loudspeaker
- Audio Compression Bitrate64 Kps
- Audio QualityNoise suppression and echo cancellation
- Volume AdjustmentAdjustable
- Capacity
- Event Capacity
200 captured pictures (with TF card); 200 alarm records
2 MB RAM (without TF card) reserved for events
- Linked Network Camera Capacity16
- Linked Indoor Extensions Capacity5
- Notice Capacity200
- Linked Doorphone Capacity17 IP doorphones Max.
- Network Parameters
- Communication ProtocolTCP/IP, SIP, RTSP
- Wired Network10/100 Mbps self-adaptive through 2-wire interface
- Wi-Fi StandardWi-Fi 802.11 b/g/n
- Bluetooth Version/
- 3G/4G Standard/
- Zigbee/
- Device Interfaces
- Alarm Input8-ch alarm inputs
- TAMPER/
- RS-4851
- USB/
- TF CardMax to 128 G, SD 2.0 or lower version
- Alarm Output
2 relays (30 V Max.)
- Two-Wire IP Interface1
- General
- Button0
- InstallationSurface mounting
- Indicator0
- Weight327 g
- Protective Level/
- Power Supply MethodTwo-wire
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity10% to 90% (no-condensing)
- Dimensions200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93")
- Battery/
- Power SupplyPowered by KAD704Y or KAD706Y series distributor
- Application EnvironmentIndoor
- Power Consumption≤ 4 W
- LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
