GuardPod Rapid Deployment Alarm Tower Battery Powered
SKU
GuardPod
- INFO
- SPECS
- DOWNLOADS
- RELATED
- VIDEOS
GuardPod battery powered alarm tower with built in SIM communication provides intruder alarm detection and monitoring for remote locations where traditional power and network infrastructure is not available on site.
Powered by the AJAX alarm system, GuardPod supports mobile app operation and remote monitoring. PIR motion detectors provide 360° intrusion protection from 3 - 15m radius with a built-in camera providing snapshot verification of any alarm events.Choose the desired battery option or whether you supply your own battery.
Battery life will depend on weather conditions.Battery Size Ajax Hub Duration (Full Function Mode) 12V 50Ah LiFePO4 Up to 45 Days 12V 100Ah LiFePO4 Up to 90 Days 12V 200Ah LiFePO4 Up to 180 Days 12V 600Ah LiFePO4 (special order item - POA) Up to 540 Days
The AJAX mobile App is provided free of charge and allows users to remotely arm / disarm the system, automatically schedule arming / disarming and monitor alarm events on the mobile phone. Optional remote control key fobs can be added for arming & disarming by operatives on site.Optional company logo or branding can be printed and applied using vinyl graphics to the tower. Please select the option if required and send us a high quality vector image of your logo.

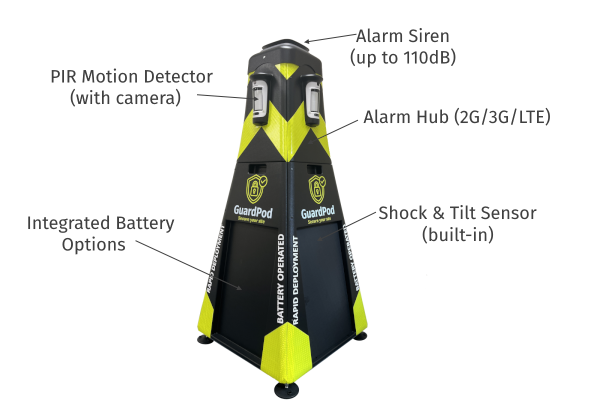

Features
- Optional Battery Sizes
- 360° Degree Coverage
- 3 - 15m Radius Detection Zone
- Camera Snapshot Verification & Photo On Demand
- No Solar Panels - Indoor & Outdoor Operation
- AJAX App and Keyfob Operation
- Remote Monitoring & Alerts
- Shock and Tilt Sensor
- Up to 110dB Siren
- 2 section design for easy transportation
Dimensions
- Height = 1470mm
- Length & Width = 650mm
- Weight Bottom Section = 26kg
- Weight Top Section = 12Kg
- Pod Material = ABS
- Base Material = Steel
Contents
- 1 x Pod Top Section with reflective wrap
- 1 x Pod Bottom Section with reflective wrap
- 1 x AJAX HB Hub with SIM card (subscription not included)
- 4 x AJAX Photo on demand PIR detectors
- 1 x AJAX Shock/Tilt Sensor
- 1 x AJAX Siren
- Optional Battery if selected
- Optional vinyl graphic - your logo, if selected
- Optional Key fobs if selected
AJAX HUB BP Capacity Ajax devices up to 100 Ajax NVRs up to 36 Users up to 50 Automation scenarios up to 32 Security groups up to 9 Rooms up to 50 Event log up to 1,000 events Wireless communication Jeweller communication technology Advanced anti-sabotage. Two-way communication. Instant notifications. Remote control and configuration in Ajax apps. Frequency bands 866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz Radio communication range up to 2,000 m Polling interval from 12 s to 300 s Proprietary wireless communication technology to transm Wings communication technology Radio communication range up to 2,000 m Encrypted communication All stored and transmitted data are protected by block enc up to 25 mW Frequency hopping Communication channels Cellular 2 × micro SIM slot Cellular bands 2G GSM900/DCS1800 (B3/B8) 3G WCDMA 850/900/2100 (B1/B5/B8) 4G (LTE) FDD B1/B3/B5/B7/B8/B20 External antenna connectors Notification types SMS Calls Photo verification Photo verification types Photo by alarm Photo by scenario Photo on demand Photo by schedule Photo resolution up to 640 × 480 pixels Number of photos in a series from 1 to 5 pictures Power supply External 4.2–16 V⎓, up to 2 A Zinc-air battery or external power source. Internal 4.2–16 V⎓, up to 2 A Rechargeable lead-acid and LiFePO4 batteries / Non-rech (not included) Device operating DC voltage range 3.5–16 V⎓ Autonomous operation On external battery in full function mode (Non Power Savi Maximum Duration On a 12 V⎓, 50 Ah (not included) up to 45 Days On a 12 V⎓, 100 Ah (not included) up to 90 Days On a 12 V⎓, 200 Ah (not included) up to 180 Days On a 12 V⎓, 600 Ah (not included) up to 540 Days Sabotage protection Tamper alarm Enclosure Dimensions 196 × 238 × 100 mm Weight 1,010 g Operating temperature range from −10 °C to +40 °C Operating humidity up to 75% Protection class IP40 PIR Detector with CAM Specifications Classification Electro-Optical Radio Channel Security Detector Type of Detector Wireless Installation Outdoor/Indoor Recommended Installation Height 0.8m to 1.3m Sensing Element 2x PIR Sensor Motion Detection Distance Adjustable, from 3m to 15m Pet Immunity Animals Up To 80cm Tall Sensitivity Adjustable, 3 Levels Motion Detector’s Viewing Angle Horizontal — 90°
Vertical — 80°Camera Angle Horizontal — 105°
Vertical — 50°TV Distortion (EBU standard) Barrel –17% Photo in Case of Alarm Photo resolution:
320 × 176 pixels (by default)
640 × 352 pixels
Shooting series up to 5 photosInfrared Light for Shooting in the Dark Yes Power Supply 4x CR123A Batteries Supply Voltage 6V Jeweller Radio Protocol Communication range with a hub — up to 1,700 m in an open space Two-way communication between hub and device
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW Block encryption with a dynamic key
Detector polling period — 12–300 s
Frequency hoppingAlarm Delivery Time 0.15s Temperature Sensor Yes Wings Radio Protocol Transmission of a series of photos
Photo delivery time with a default settings: up to 9 secondsOperating Temperature -25°C~60°C Operating Humidity Up to 95% IP Rating IP55 Anti-Sabotage Anti-masking;
Protection against forgery; Jamming detection;
Tamper-resistantDimensions 206mm x 108mm x 93mm Weight 0.47kg SHOCK / TILT Specifications Classification Combined point magnetic contact and vibration radio channel security detect Type of detector Wireless Installation method Indoors Compatibility Hub, Hub Plus, Hub 2 and ReX Sensing element Reed switch, accelerometer Alarm signal delivery time 0.15 s Activation threshold Small magnet - 1 cm, Big magnet - 2 cm Power supply Battery: CR123A battery Power supply voltage 3 V Battery life - up to 5 years Jeweller radio technology Communication range with central unit - up to 1,200 m in an open space Two-way communication between devices Operating frequencies - 868.0-868.6 MHz Self-adjusting RF output power - up to 20 mW Block encryption based on AES algorithm Device polling period - 12-300 s Temperature sensor Available Operating temperature range +5°C to +40°C Permissible humidity Up to 75% Anti-sabotage Protection against fraud, Jamming detection, Tamper-resistant Remote setting and testing + Dimensions Diameter: 20 mm Height: 90 mm Weight 29 g SIREN Specifications Classification Warning Device with LED Indicators (Outdoor Siren) Type of Detector Wireless Installation Outdoor/Indoor Type of Notification Sound/Light Sound Volume Level Adjustable, 85−113 dB at a Distance of 1m Alarm Duration Adjustable; 3s to 3min Indication of Armed/Disarmed Status Yes Power Supply Battery: Four CR123A batteries, 3 V Mains supply: DC 12 V±20% Battery Life 5 Years Jewelller Radio Protocol Communication range with central unit — up to 1,500 m in an open space Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Detector polling period — 12−300 sOperating Temperature -25°C~50°C Operating Humidity Up to 95% IP Rating IP54 Anti-Sabotage Forgery prevention; Jamming detection; Tamper-resistant Dimensions 200mm x 200mm x 51mm Weight 0.528kg GuardPod Tower Dimensions Height 1470mm Width x length 650mm Weight (bottom section) 26kg Weight (top secton) 12kg Material (Tower) ABS Plastic Material Base (Steel) Steel BATTERY Optional Battery 50Ah Rated Capacity 50Ah Battery Power 640Wh Battery Voltage 12.8V Operation Voltage 10-14.6V Standard Charge/Discharge 25A/25A Maximum Continuous Charge/Discharge 50A/50A Peak Current 200A/10s Number of Series and Parallel Connections 4P4S Charging Voltage 14.6V Battery Size 232*135*181mm / 9.13*5.31*7.13inch Battery Weight 5.74kg / 12.65lbs Operation Temperature Range Charge: 0~55℃ / Discharge: -20~55℃ Terminal Type M6 Case Material ABS Optional Battery 100Ah Rated Capacity 100Ah Battery Power 1280Wh Battery Voltage 12.8V Operation Voltage 10-14.6V Standard Charge/Discharge 50A/50A Maximum Continuous Charge/Discharge 100A/100A Peak Current 230A/10s Number of Series and Parallel Connections 4P4S Charging Voltage 14.6V Battery Size 260*168*234mm / 10.2*6.6*9.2inch Battery Weight 10.8kg / 23.8lbs Operation Temperature Range Charge: 0~55℃ / Discharge: -20~55℃ Terminal Type M8 Optional Battery 200Ah Rated Capacity 200Ah Battery Power 2560Wh Battery Voltage 12.8V Operation Voltage 10-14.6V Standard Charge/Discharge 100A/100A Maximum Continuous Charge/Discharge 160A/200A Peak Current 500A/10s Number of Series and Parallel Connections 4P4S Charging Voltage 14.6V Battery Size 367*189*271mm / 14.4*7.4*10.7inch Battery Weight 20kg / 44.1lbs Operation Temperature Range Charge: 0~55℃ / Discharge: -20~55℃ Terminal Type M8
Part Number
GuardPod-BP
EAN Code
7426961274053
