RG-POE-50-60W-MG Ruijie 60W PoE Injector for PTZ
SKU
RG-POE-50-60W-MG
- INFO
- SPECS
- DOWNLOADS
- RELATED
- VIDEOS

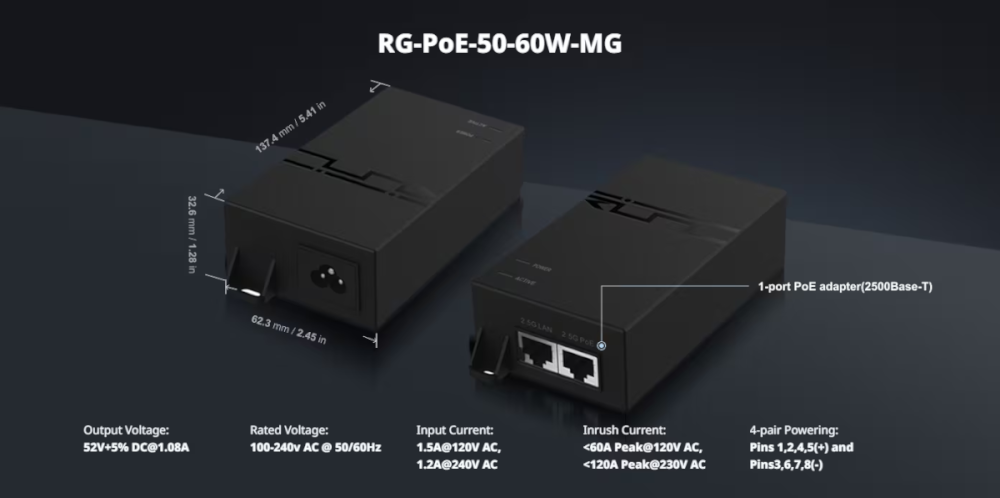

RG-POE-50-60W-MG 60W PoE Injector
RG-POE-50-60W-MG is a 60 watt PoE (Power over Ethernet) injector. The injector has 2 x 2500Mbps RJ45 ports with 1 PoE port. Supporting IEEE 802.3af/at/bt standards and with a maximum budget of up to 60W. With a range of up to 100m this injector is ideal to provide power to a PoE device where local DC power is unavailable.
Key Features
- 2x 2500Mbps RJ45 Ports with 1 PoE
- IEEE 802.3af/at/bt compliant
- Delivers power up to 100 meters
- Auto-determine the necessary power requirements
- Plug-and-Play, requires no configuration
- AC power via figure 8 kettle lead.
Specification Dimensions 137.4x62.3x32.6 mm Weight 225 g (7.94 Oz) Output Voltage 56VDC @ 1.08A Gigabit LAN Port 2.5G Remote Reset Capability No Reset Button No Rated Voltage 100-240VAC @ 50/60Hz Input Current 1.5A@120VAC, 1.2A@240VAC Inrush Current <60A Peak @ 120VAC,
<120A Peak @ 230VACEfficiency 80+% Output Ripple 1% Switching Frequency 65KHZ Line Regulation ≤5% Load Regulation ≤5% 2-Pair Powering - 4-Pair Powering Pins 1, 2, 4, 5 (+) and
Pins 3, 6, 7, 8 (-)Operating Temperature 0 to 40° C (32 to 104° F) Storage Temperature ﹣30 to 70°C (﹣22 to 158° F) Operating Humidity 35 to 95% Noncondensing AC Connector 3-pole appliance inlet type C6 Data IN / POE RJ45 Shielded Socket Surge Protection Difference and Common Mode
Part Number
RG-POE-50-60W-MG
EAN Code
6971693274709
Brand
Ruijie
Item Condition
New
