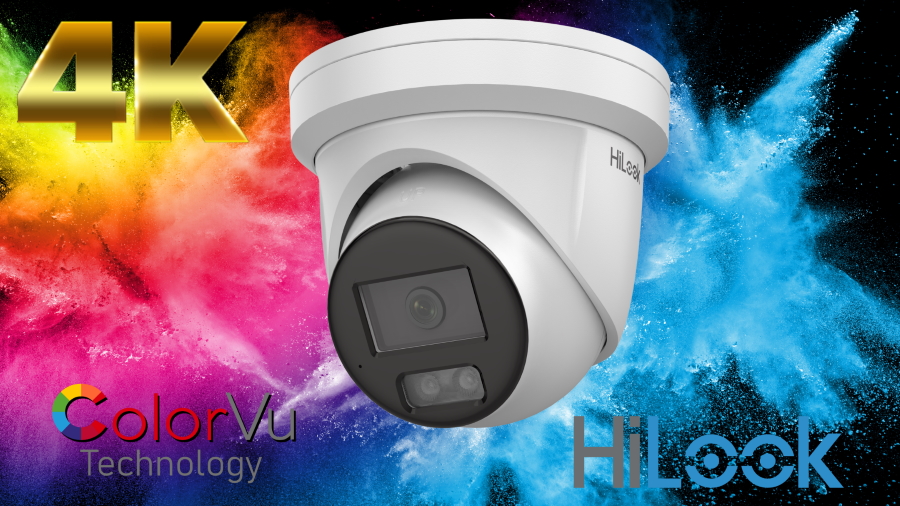

HiLook by Hikvision IPC-T289H-MU 4K 8MP ColorVu IP Network Turret Camera
The HiLook series developed by Hikvision, the world's leading CCTV manufacturer, is designed for customers wanting High Performance Video surveillance at low prices with simple to use and reliable products suited to domestic and commercial CCTV applications.
ColorVu technology by Hikvision provides 24/7 vivid colourful images at night through the use of high performance ultra low light sensor & F1.0 large aperture to vastly improve the utilization of available light. In zero-light scenarios, built-in, warm supplemental LEDs works to guarantee colourful images.
IPC-T289H-MU is a 4K 8MP ColorVu IP network turret camera featuring 3840 x 2160 resolution. This camera has a 2.8mm fixed lens and up to 30m white light distance. This camera supports 12V DC or PoE (Power of Ethernet) connections for easy installation and uses the latest H.265 / H.265+ compression saving considerable bandwidth and data storage requirements. Motion detection, privacy masking, video tampering, day/night switch and image settings support.
The camera is manufactured in all metal construction and IP67 weather resistant housing making it suitable for both indoor and outdoor applications with 3 axis adjustment allowing horizontal & vertical mounting options.
Key Features
- 4K 8MP ultra high performance
- 3840x2160 @20FPS / 3200x1800 @25FPS / 2688x1520 @25FPS
- 2.8mm fixed lens
- Built in microphone
- Supports H.265 / H.265+ compression
- ColorVu 24/7 colour imaging
- Up to 30m white light LEDs
- Water and dust resistant (IP67)
- Mobile monitoring via Hik-connect
- Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with white light
- Shutter Time1/3 s to 1/100,000 s
- Day & Night24/7 color imaging
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 93°, vertical FOV 46°, diagonal FOV 112°
- Lens MountM16
- Iris TypeFixed
- ApertureF1.0
- Depth Of Field
2.8 mm: 3.4 m to ∞
4 mm: 3.8 m to ∞
- DORI
- DORI
2.8 mm: D: 91 m, O: 36 m, R: 18 m, I: 9 m
4 mm: D: 111 m, O: 44 m, R: 22 m, I: 11 m
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz:
20 fps (3840 × 2160)
25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio Type-U: Mono sound
- Audio Compression-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering-U: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface ( Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, HiLookVision Web Client, HiLookVision App
- Web Browser
Plug-in required live view: IE10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters SwitchYes
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)130 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
- Built-In MicrophoneYes
- Reset KeyYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- General
- Power
12 VDC ± 25%, 0.79 A, max. 9.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W
- MaterialMetal
- Dimension
Ø138.3 mm × 115.4 mm (Ø5.4 × 4.5\")"
- Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
- Approx. 770 g (1.7 lb.)
- With Package WeightApprox. 1040 g (2.3 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, three streams
- Approval
- EMCCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,FCC: 47 CFR Part 15, Subpart B
- Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
